Sif- en slypmasjien
Sieving and grinding machine is composed of ball milling cylinder, sieving screen system, feeding system, and collecting system. The materials can be sieved while being smashed by ball milling
- Data Sheet
- Pasbare bykomstigheid
Sieving and grinding machine is composed of ball milling cylinder, sieving screen system, feeding system, and collecting system. The materials can be sieved while being smashed by ball milling. After the ground powder reaches to less than size of screen hole, they will be screened for output through the sieving system. The sieved powder shall be collected by the collecting system, and the material is continuously fed through the feeding system. This machine model is especially suitable for materials that need to be crushed to a specific particle size. For an example, if the user wants to grind materials into particle sizes of 200-300 meshes, it is much more suitable to choose this machine. In addition, the sieving and grinding mill machine also greatly improves grinding efficiency and reduces unnecessary repeated ball milling.
When the sieve and grinding mill machine is working, the grinding medium and materials inside the cylinder are raised to a certain height with rotation of the cylinder, and fall off the wall of the cylinder due to gravity and fall along the parabola. The material is crushed under the impact of the grinding medium and friction and shear caused by the rolling and sliding of the grinding medium. This kind of ball mill can be widely used in electronic materials, magnetic materials, bio-medicine, ceramic glaze slurry, non-metallic minerals, new materials and other industries.

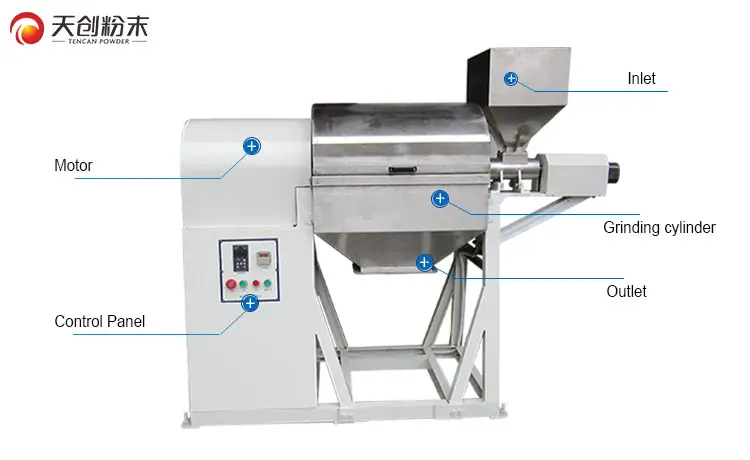

Details of Sieving and Grinding Machine
|Technical Parameters of Sieving and Grinding Machine|
|Load volume of materials|
|Height from ground to the outlet (mm)||Size of cylinder|
|MS-30||10-72||220V 1 fase||1.5||10||480||Φ320 * 420 * 5||1690 * 650 * 1360||290|
|MS-60||10-68||380V 3 fase||2.2||20||580||Φ382 * 580 * 6||1856 * 700 * 1500||350|
|MS-100||10-58||380V 3 fase||3||33||530||Φ455 * 610 * 8||1910 * 700 * 1500||455|
|MS-200||10-58||380V 3 fase||5.5||66||510||2200 * 820 * 1600||560|
